Terrain Pilot

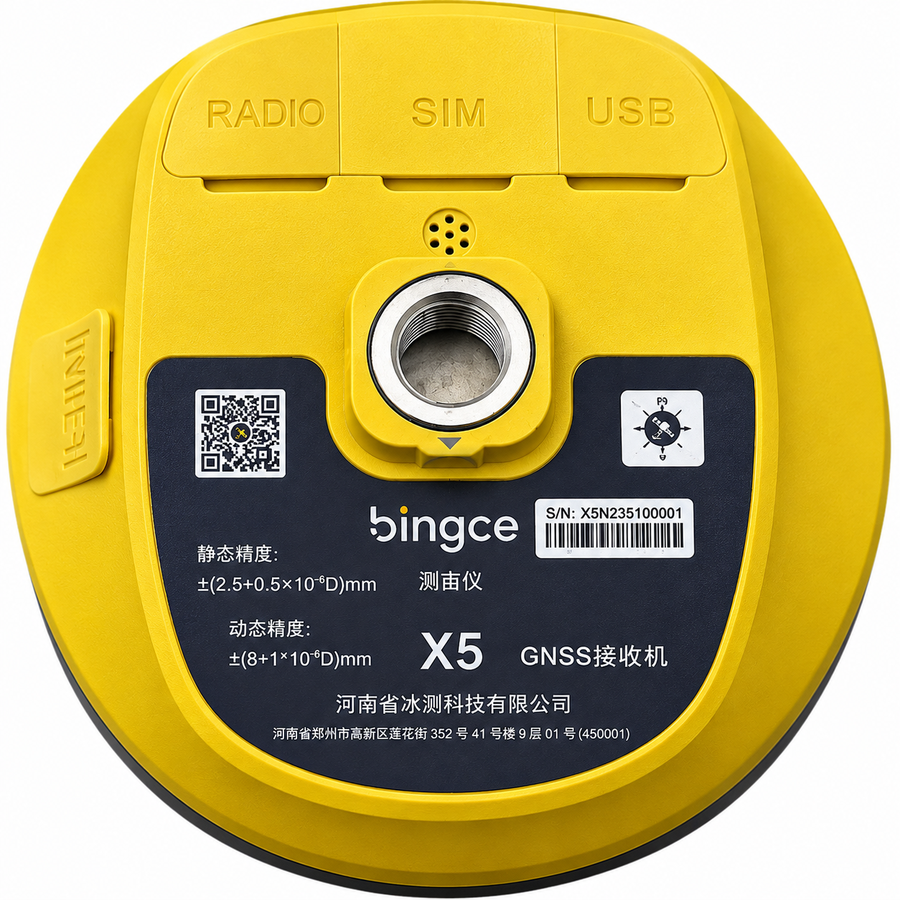

Terrain Pilot X5
Get fast, hassle-free excavator guidance without running complex wiring harnesses across your machine....
$5,999.00
View product
Intelligent Excavator Guidance
Precision that moves earth.
Terrain Pilot Guidance System
Survey-grade machine guidance designed to help excavator operators work faster, reduce rework and achieve accurate results without complex coordination.
±3.4 cm
Survey-grade accuracy
5-minute setup
Fast installation
Solo operation
Less coordination
Terrain Pilot System
EXPLORE PRODUCTS
Explore the Terrain Pilot Range
Discover Terrain Pilot's complete range of intelligent excavator guidance systems, precision GNSS technology, machine control displays and field-ready accessories. Every solution is engineered to improve digging accuracy, reduce rework and maximise productivity on every excavation project.
Terrain Pilot

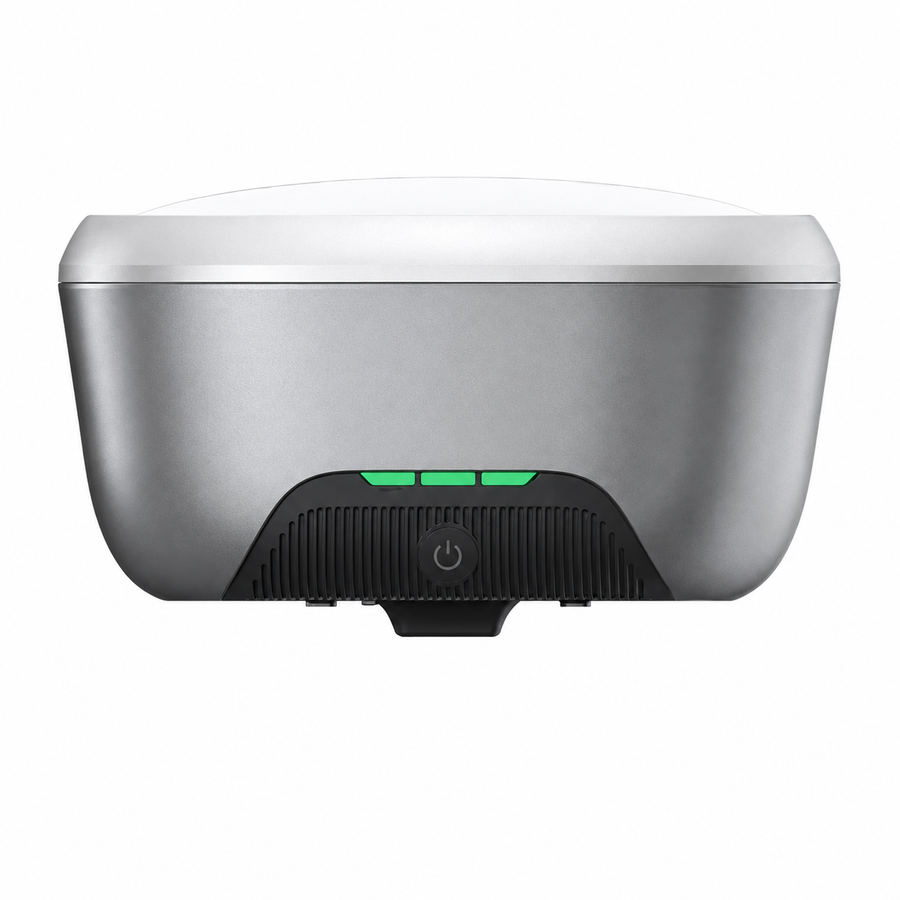

Terrain Pilot X7
Achieve real-time, centimetre-level excavation guidance anywhere—even completely off-grid. The X7 1+1 ...
$9,999.00
View product
Terrain Pilot

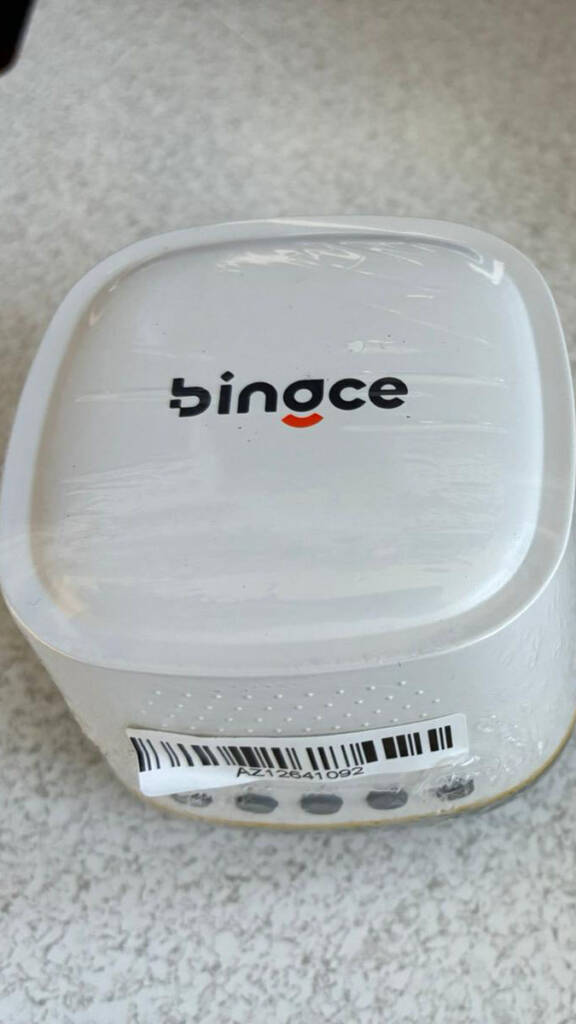

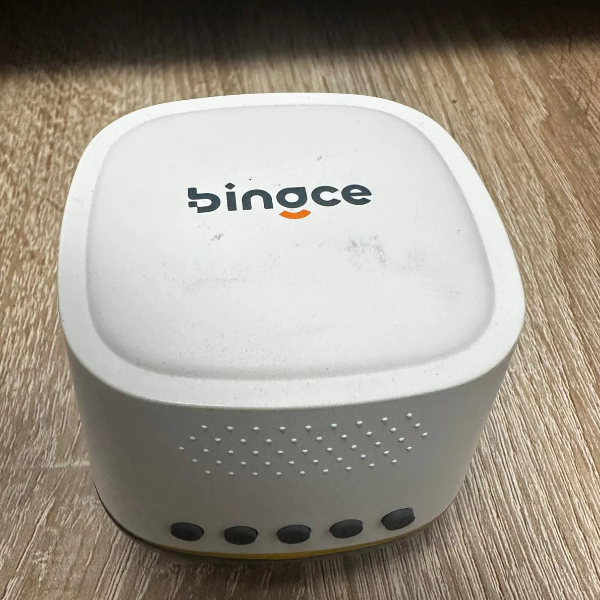

Terrain Pilot X3
The Terrain Pilot X3 is engineered for adventure, combining rugged durability with advanced performanc...
$3,999.00
$5,999.00
View product
SYSTEM COMPARISON
Terrain Pilot X5 vs X7
Compare our core wireless setup against the off-grid 1+1 Base & Rover radio system to find the right precision guidance package for your job site.
Quick & Wireless
Terrain Pilot X5
Ideal for owner-operators and contractors wanting fast, cable-free installation with essential 3D depth and CAD viewing.
- Single Wireless RTK: Stick-mounted unit with ~18h battery life
- Bluetooth / Wi-Fi: Zero machine wiring harnesses to route
- Solar Wireless Sensor: Continuous daytime power on stick/boom
- Standard RTK/NTRIP: Connects via cellular data/internet streams
1+1 Local Radio RTK
Terrain Pilot X7
Engineered for remote sites and zero-cellular areas using a dedicated Base-to-Rover radio correction link.
- 1+1 Dual GNSS: Includes 1× Static Base + 1× Machine Rover
- UHF Radio Link: 100% off-grid corrections without cellular/NTRIP
- Centimetre RTK FIX: Independent local site positioning
- Survey Coordinate Tie-in: Compatible with local control points & CAD
| Key Features | Terrain Pilot X5 | Terrain Pilot X7 |
|---|---|---|
| Core Architecture | 1× Stick-mounted wireless RTK receiver | 2× X7 Units (1× Static Base + 1× Excavator Rover) |
| Correction Link | External RTK / NTRIP cellular connection | Direct Base-to-Rover local UHF radio link |
| Cellular / Internet Need | Requires cellular/internet for NTRIP corrections | Zero internet required in local 1+1 radio mode |
| Machine Communication | Bluetooth & Wi-Fi link to cab screen | Radio Base-to-Rover + guidance machine link |
| CAD & Design Support | Import & visual CAD reference | RTK-guided design & site coordinate tie-in |
| Installation Style | Fastest wireless swap across machines | Base tripod setup + Rover machine mounting |
| Best For | General trenching, pads, and urban jobs | Remote civil projects, forestry, & zero-signal sites |
01
Live Machine Guidance
TP–RTK / ACTIVE
Survey-grade positioning
Reliable real-time guidance
System connected
Ready for field operation
02
Intelligent Guidance Platform
Precision made simple.
Terrain Pilot transforms complex excavation guidance into a clear, operator-focused workflow. The system combines precise positioning, rapid installation and an intuitive interface built for demanding field conditions.
Work independently
Complete precision excavation tasks with less dependence on constant surveyor coordination and repeated manual checks.
Reduce rework
Real-time machine guidance helps operators identify target levels and work accurately from the beginning.
Designed for the field

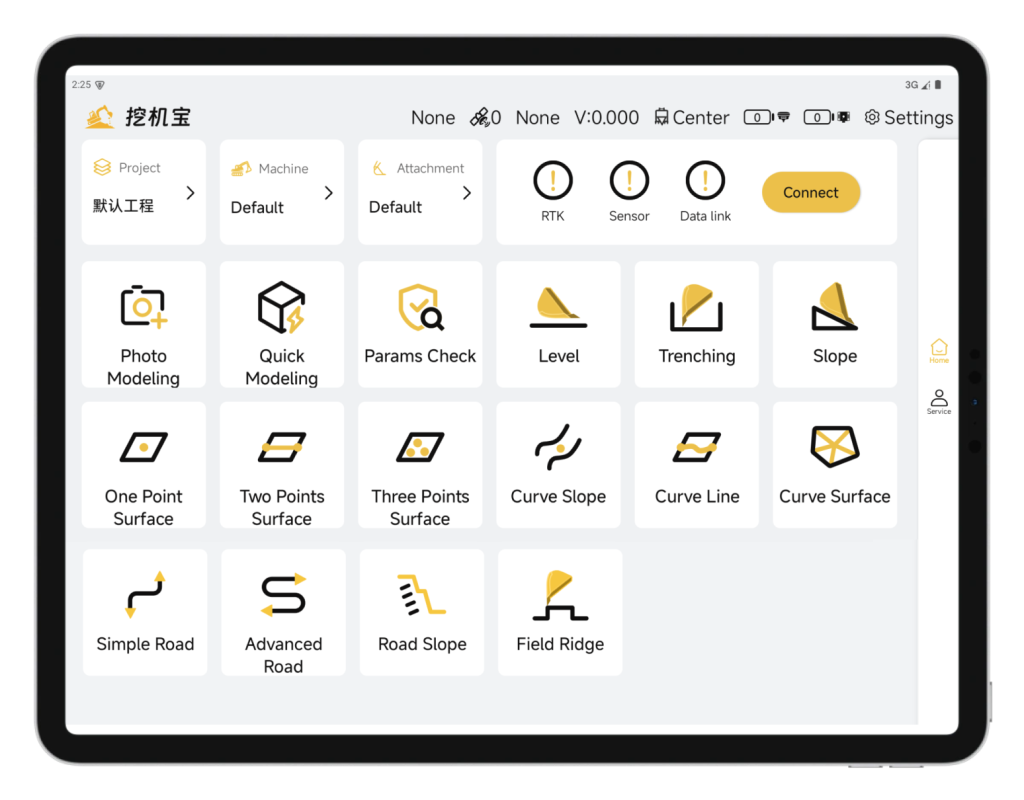

A practical interface provides immediate access to trenching, slope, road and surface modelling tools.
01
±
0
–
0
cm
Accuracy
Survey-grade positioning delivers dependable machine guidance for excavation, grading and surface work.
Performance gain
02
0
%
Productivity improvement
Reduce unnecessary coordination, manual checking and downtime through a more efficient field workflow.
03
0
Minute
Setup time
A streamlined installation process helps operators begin working without lengthy or complicated preparation.
Built for multiple applications
Trenching
Slope Work
Road Construction
Surface Modelling
Field Ridges
03
Built for Real Worksites
One system. Multiple applications.
Terrain Pilot supports a wide range of excavation, grading and construction workflows. Select a use case to explore how the system improves accuracy, speed and operator control.
Hover or select a card to explore
01
Land management
Use Case
Land Development
Precision across large areas
Supported
Create accurate levels, contours and drainage outcomes across farms, subdivisions and large-scale land development projects.
Key benefits
- Consistent grading across broad work areas
- Reduced reliance on repeated survey checks
- Better drainage and surface control
02
Earthworks
Use Case
Slope Work
Control every angle
Supported
Maintain target gradients and angles while cutting batters, embankments, ramps and complex sloped surfaces.
Key benefits
- Real-time target slope guidance
- More consistent cuts and finished surfaces
- Less manual checking and rework
03
Utilities
Use Case
Trenching
Depth and line control
Supported
Follow required trench depths, alignments and gradients for drainage, utilities, pipework and infrastructure installation.
Key benefits
- Accurate depth and fall control
- Reduced over-excavation and material waste
- Faster installation preparation
04
Construction
Use Case
Site Preparation
Build from the right level
Supported
Prepare building platforms, access routes and foundation areas with clear target-level guidance throughout the excavation.
Key benefits
- Accurate platform and foundation levels
- Improved coordination between project stages
- Faster completion with fewer corrections
04
Discuss Your Application
Need guidance for a different application?
Speak with our team about your machine, project requirements and intended Terrain Pilot workflow.
04
Product Overview
Machine guidance, made visual.
See how Terrain Pilot brings real-time accuracy, intuitive controls and efficient machine guidance directly into the operator’s cab.
Watch the system in action
01
Positioning
±3–4 cm
RTK accuracy
Real-time positioning gives operators clear guidance for excavation, grading and surface preparation.
02
Operator experience
Simple
Intuitive interface
Clear controls and visual workflows help operators access essential tools without unnecessary complexity.
Terrain Pilot Live
TP / 04
Live demonstration
Operator Interface
System
Terrain Pilot
Mode
Interface
Status
Online
03
Installation
5 min
Rapid setup
A streamlined setup process allows teams to connect, configure and begin operating with minimal downtime.
04
Performance
40%
More productivity
Reduce repeated checking, field coordination and avoidable rework through a more efficient machine-guidance workflow.
05
How It Works
From installation to precision excavation.
Terrain Pilot turns advanced machine guidance into a straightforward field workflow. Install the system, connect your positioning data, select the required operation and begin working with real-time accuracy.
Five-step workflow
Designed for fast field operation
Terrain Pilot Workflow
Step 01 / 05
01
Step 01 — Hardware installation
Install the Terrain Pilot system
Mount the GNSS receiver, sensors and operator display securely onto the excavator using the recommended installation positions.
- Install the IMU and GNSS positioning hardware
- Mount the operator display inside the cab
- Connect power and communication cables
Result
Hardware ready for calibration
02
Step 02 — Positioning connection
Connect the RTK guidance network
Establish a positioning connection and confirm that the GNSS receiver, sensors and correction data are communicating correctly.
- Connect to the RTK correction service
- Confirm sensor and data-link status
- Complete the machine calibration process
Result
Survey-grade positioning established
03
Step 03 — Project configuration
Select the machine and project
Choose the relevant machine profile, attachment and project information from the Terrain Pilot operator interface.
- Select the configured excavator profile
- Choose the current bucket or attachment
- Load or create the required project
Result
Machine and project data loaded
04
Step 04 — Application selection
Choose the required work mode
Select the function that matches the task, then enter the required levels, gradients, points or design parameters.
- Select trenching, slope, road or surface mode
- Enter the target depth, level or gradient
- Confirm the model and working direction
Result
Guidance target ready for operation
05
Step 05 — Real-time operation
Begin precision excavation
Operate the excavator while Terrain Pilot continuously displays the bucket position and its relationship to the target design.
- Follow live depth and positioning information
- Identify cut, fill and target-level requirements
- Complete work with fewer manual checks
Result
Accurate work completed efficiently
Simple field workflow
Install once. Configure quickly. Work accurately.
01
Hardware mounted
02
RTK connected
03
Project loaded
04
Mode selected
05
Work completed
06
Terrain Pilot Tutorials
Learn how to use Terrain Pilot.
Explore practical Terrain Pilot video guides covering system setup, parameter checks, operation and data sharing.
01
System Setup
Video Guide
Tutorial - Parameter Check
